Bosch Rexroth Proportioneel ventiel 4WREE10EA25-2X/G24K31/A1V

R900967790

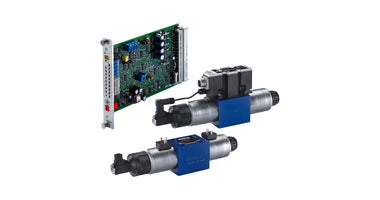

Afbeeldingen van producten kunnen afwijken van geleverde of te leveren producten.

Bosch Rexroth Proportioneel ventiel 4WREE10EA25-2X/G24K31/A1V

R900967790
€3.690,38
€4.465,36 incl. btw

Actuele voorraad

Reparatie aanvragen

Contact

Sales support engineer

085 0239 459 06 31 58 23 63 verkoop@perdok.nl

Vraag eenvoudig de actuele levertijd op

Bel mij terug

Productinformatie

Industrial high-performance hydraulic valve
Reliable control of the direction of the oil flow according to hydraulic symbol.
High accuracy thanks to internal piston position feedback

Omschrijving

Industriële hydraulische klep in een hoog prestatiebereik, betrouwbare controle van de olietoevoerrichting volgens hydraulisch symbool.

Specificaties

                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Merk
Bosch Rexroth
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Connectie diagram
ISO 4401-05-04-0-05
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Connectie diagram NFPA
NFPA T3.5.1 R2-2002 D05
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Data sheet nummer
29061
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Elektrische connectie omschrijving
Connector 7-pole (6 + PE) according to DIN EN 175201-804
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Elektrische connector
Connector 7-pole (6 + PE)
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Elektrische connector
Connector 7-pole (6 + PE)
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Hydraulische vloeistof
HL HLP HLPD HVLP HVLPD HETG HEES HEPG HFDU HFDR
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Max. flow
150 l/min
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Max. druk
315 bar
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Nominale doorstroom
25 l/min
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Aantal poorten
4
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Aantal schakelstanden
2
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Translation missing: nl.product.specs.protection_class
IP65
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Seals
FKM
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Maat
10
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Size_CETOP
D05
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Spool-symbool
Symbol EA
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Voedingsspanning
24 VDC
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Type Activering
Electrical with integrated electronics
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"29061","electrical_connection_description":"Connector 7-pole (6 + PE) according to DIN EN 175201-804","electrical_connector":"Connector 7-pole (6 + PE)","electrical_connector1":"Connector 7-pole (6 + PE)","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HETG;HEES;HEPG;HFDU;HFDR","max_flow":"150 l\/min","max_pressure":"315 bar","nominal_flow":"25 l\/min","number_of_ports":"4","number_of_switching_positions":"2","protection_class":"IP65","seals":"FKM","size":"10","size_cetop":"D05","spool_symbol":"Symbol EA","supply_voltage1":"24 VDC","type_of_actuation":"Electrical with integrated electronics","type_of_connection":"Subplate mounting"}
Type Verbinding
Subplate mounting
