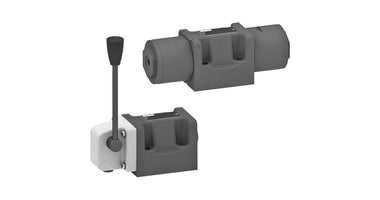

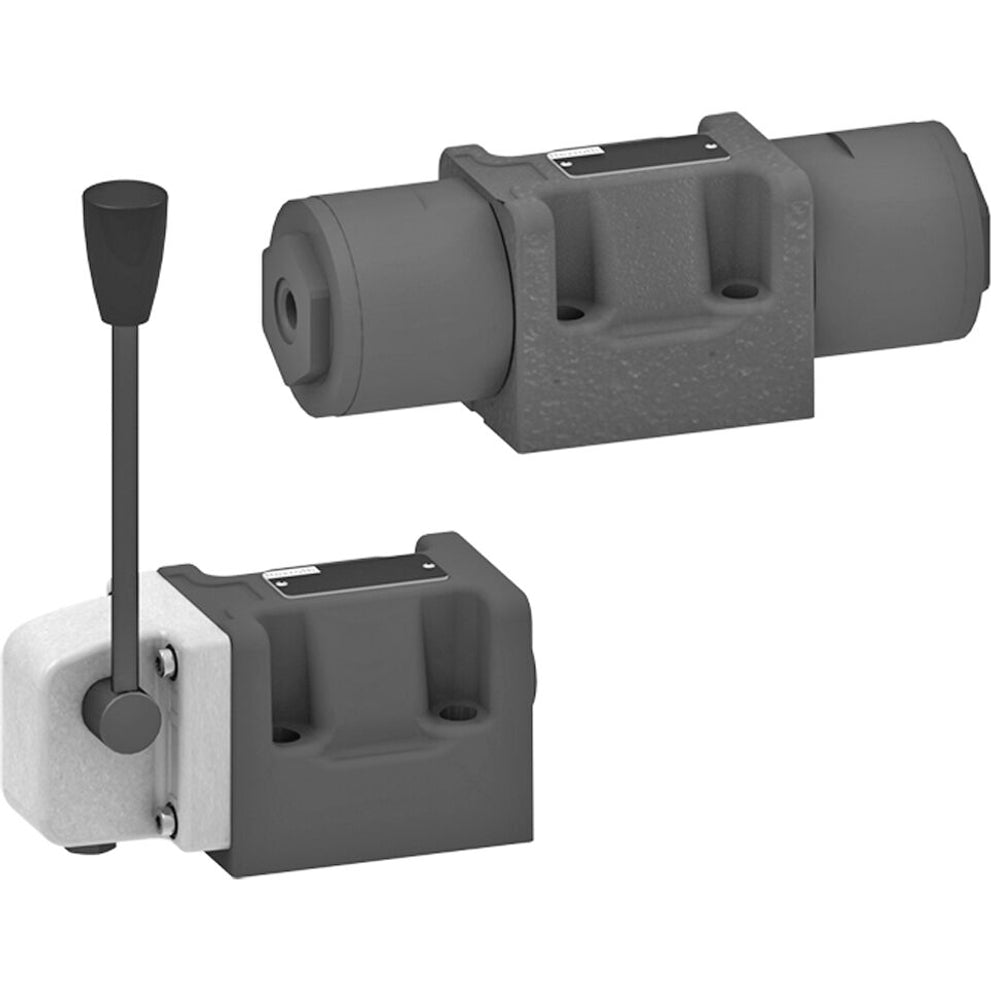

Bosch Rexroth Schakelventiel 4WMM10D5X//M

R901350271

Afbeeldingen van producten kunnen afwijken van geleverde of te leveren producten.

Bosch Rexroth Schakelventiel 4WMM10D5X//M

R901350271
€775,47
€938,32 incl. btw

Actuele voorraad

Reparatie aanvragen

Contact

Sales support engineer

085 0239 459 06 31 58 23 63 verkoop@perdok.nl

Vraag eenvoudig de actuele levertijd op

Bel mij terug

Productinformatie

Industrial hydraulic valve in a high performance range
Reliable switch-over of the oil flow direction according to hydraulic symbol

Omschrijving

Industriële hydraulische klep in een hoog prestatiebereik. Betrouwbare omschakeling van de richting van de olietoevoer volgens hydraulisch symbool.

Specificaties

                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Merk
Bosch Rexroth
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Connectie diagram
ISO 4401-05-04-0-05
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Connectie diagram NFPA
NFPA T3.5.1 R2-2002 D05
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Data sheet nummer
22334
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Hydraulische vloeistof
HL HLP HLPD HVLP HVLPD HFC
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Max. flow
160 l/min
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Max. druk
350 bar
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Aantal poorten
4
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Aantal schakelstanden
2
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Seals
NBR
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Maat
10
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Size_CETOP
D05
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Spool-symbool
Symbol D
                    {"brand":"Bosch Rexroth","connection_diagram":"ISO 4401-05-04-0-05","connection_diagram_nfpa":"NFPA T3.5.1 R2-2002 D05","data_sheet_number":"22334","hydraulic_fluid":"HL;HLP;HLPD;HVLP;HVLPD;HFC","max_flow":"160 l\/min","max_pressure":"350 bar","number_of_ports":"4","number_of_switching_positions":"2","seals":"NBR","size":"10","size_cetop":"D05","spool_symbol":"Symbol D","type_of_connection":"Subplate mounting"}
Type Verbinding
Subplate mounting
EAN

Downloads

Data sheet
Gebruiksaanwijzing
